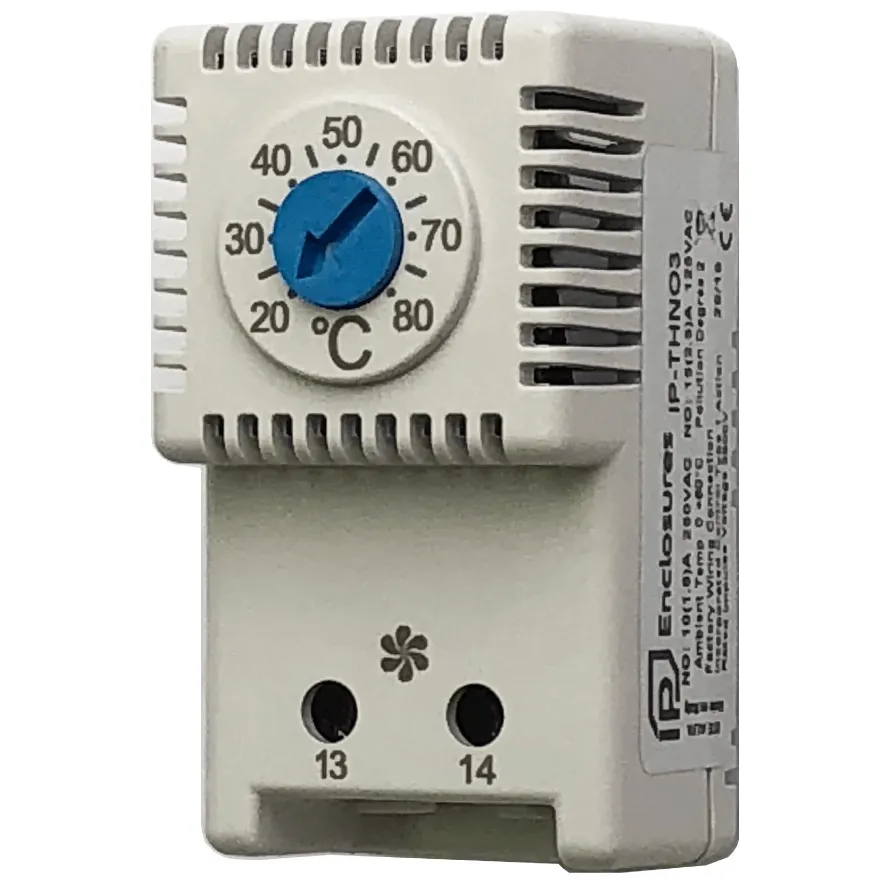

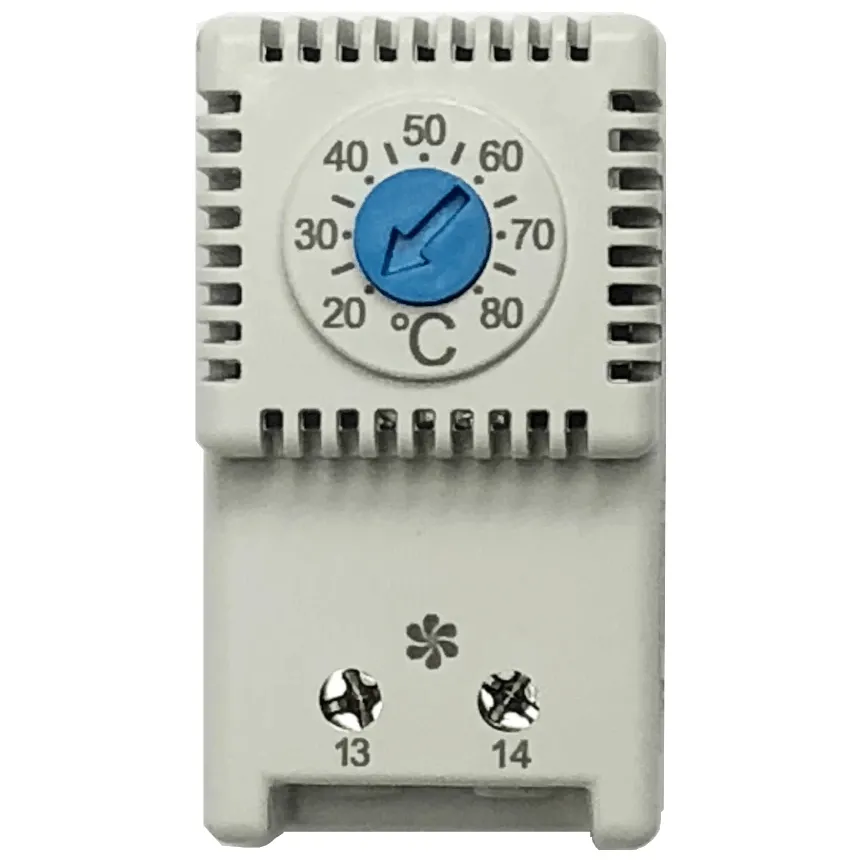

IP-THNO3 Thermostat Single NO +20/+80 °C

  •  - Click to enlarge
  •  - Click to enlarge
IP-THNO3 Thermostat Single NO +20/+80 °C

Tap for gallery

$53.68inc GST
$43.90
$48.29inc GST


Product Information
Specification

Thermostat For Heater NO +20 / +80 °C

Suitable for use with IP Enclosures heating and cooling products.
Manufactured to the highest quality in Italy.

FeatureDetail
Contact functionNO
Temperature setting range+20 / +80 °C
Precision±4 °C
Hysteresis7 °C
Max. switching current
250Vac resistive load (inductive load)10 (1.6) A
125Vac resistive load (inductive load)15 (2.5) A
Max. switching power in Vdc30 W
Temperature sensor typeThermostatic bimetal
Contact typeSnap action
Contact resistance< 10 mOhm
Service life> 100,000 cycles
Electrical connections2-pole terminal for 2.5 mm² wire
CasingPA6; UL94 V0 self-estinguishing; light grey RAL 7035
Protection degree EN60529IP20
Operating temperature-25 / +80 °C
Storage temperature-45 / +80 °C
MountingClip for mounting on DIN rail 35 mm EN50022
Installation positionVariable
ConformityCE - UL
DimensionsH 61 x W 34 x D 35 mm
Weight0.048 kg



Images are indicative only. Contents and colours may vary.

Product CodeIP-THNO3
ManufacturerIP Enclosures
ConditionNew
Weight0.048 kg
Width3.4 cm
Height6.1 cm
Depth3.5 cm
