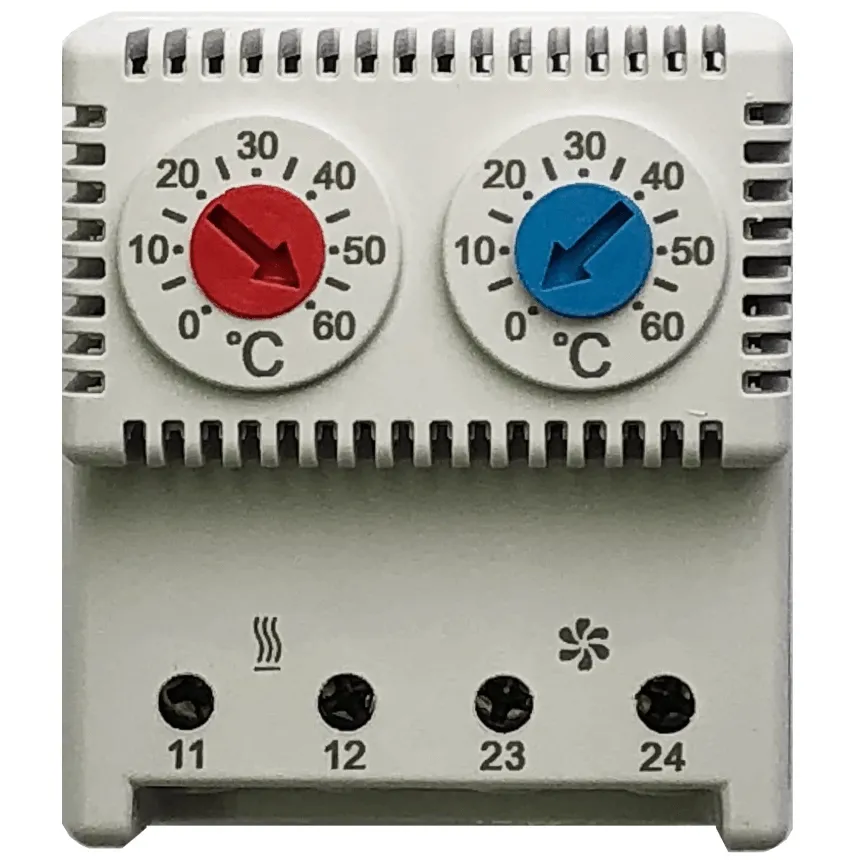

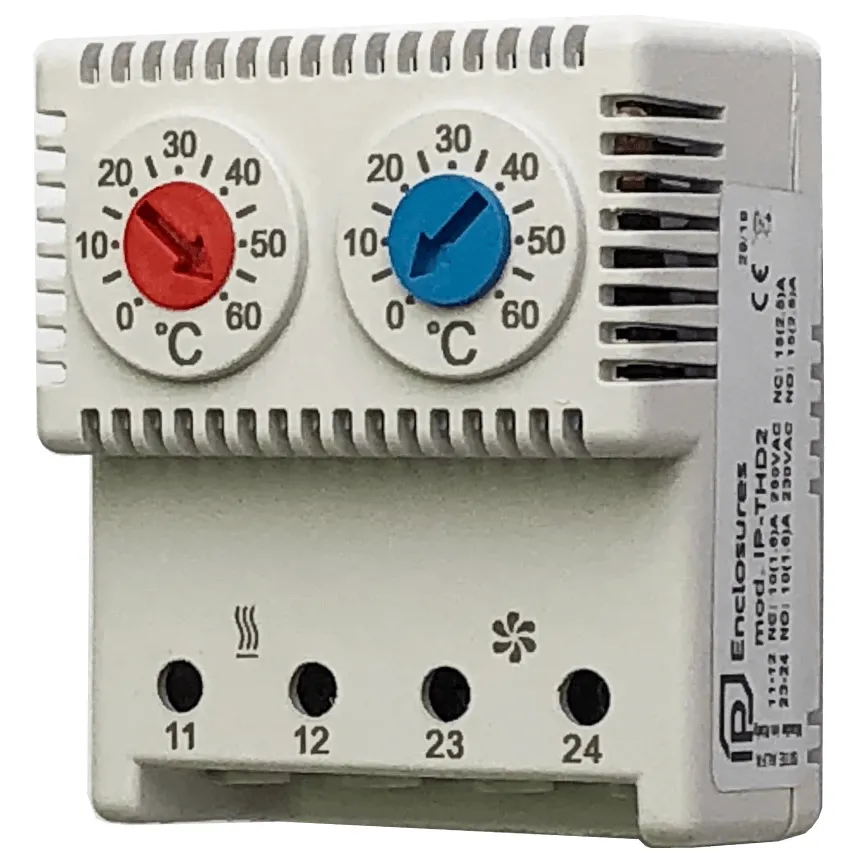

Name: IP-THD2 Thermostat Double NC|NO 0/+60| 0/+60 °C
Brand: IP Enclosures
SKU: IP-THD2
Price: 87.45 AUD
Availability: InStock

Double Thermostat For Heater NC | NO 0 / +60 | 0 / +60 °C

Compact Double Thermostat for DIN 35mm rail mounting.
High capacity separated NO and NC contacts.
Manufactured to the highest quality in Italy.

Feature	Detail
Contact function	NC \| NO
Temperature setting range	0 / +60 \| 0 / +60 °C
Precision	±4 °C
Hysteresis	7 °C
Max. switching current at:
250Vac resistive load (inductive load)	10 (1.6) A
125Vac resistive load (inductive load)	15 (2.5) A
Max. switching power in Vdc	30 W
Temperature sensor type	Thermostatic bimetal
Contact type	Snap action
Contact resistance	< 10 mOhm
Service life	> 100,000 cycles
Electrical connections	2-pole terminal for 2.5 mm² wire
Casing	PA6; UL94 V0 self-estinguishing; light grey RAL 7035
Protection degree EN60529	IP20
Operating temperature	-25 / +80 °C
Storage temperature	-45 / +80 °C
Mounting	Clip for mounting on DIN rail 35 mm EN50022
Installation position	Variable
Conformity	CE - UL
Dimensions	H 61 x W 53 x D 35 mm
Weight	0.080 kg

Images are indicative only. Contents and colours may vary.

IP-THD2 Thermostat Double NC|NO 0/+60| 0/+60 °C
