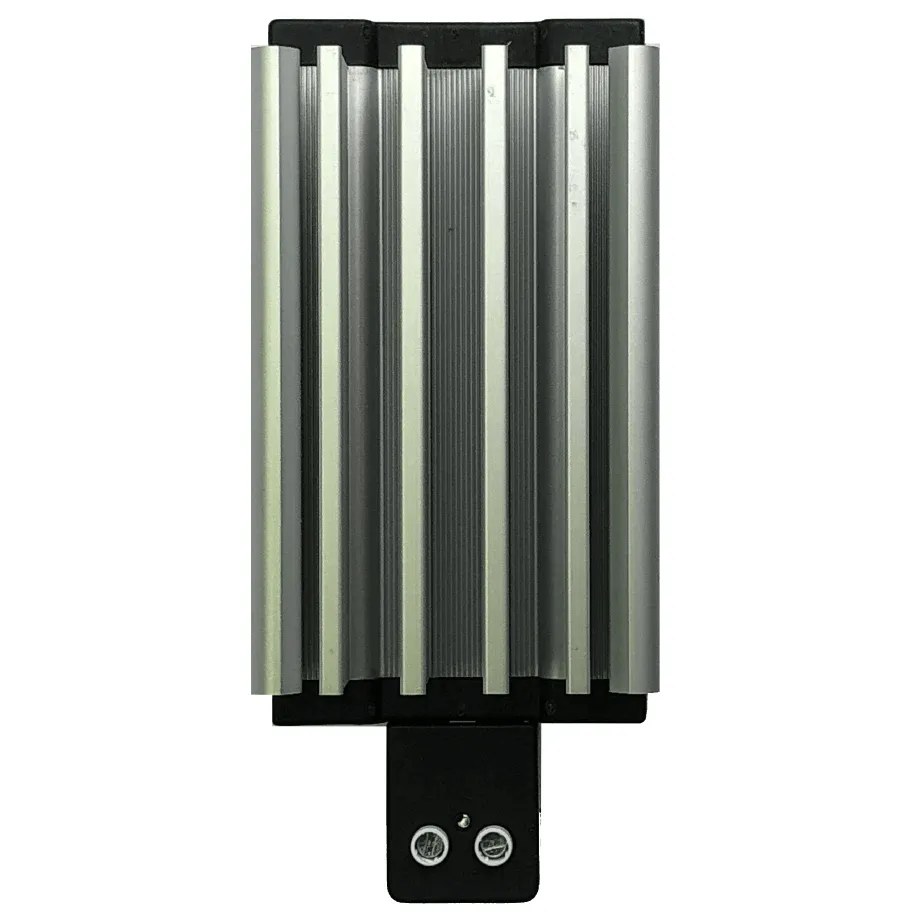

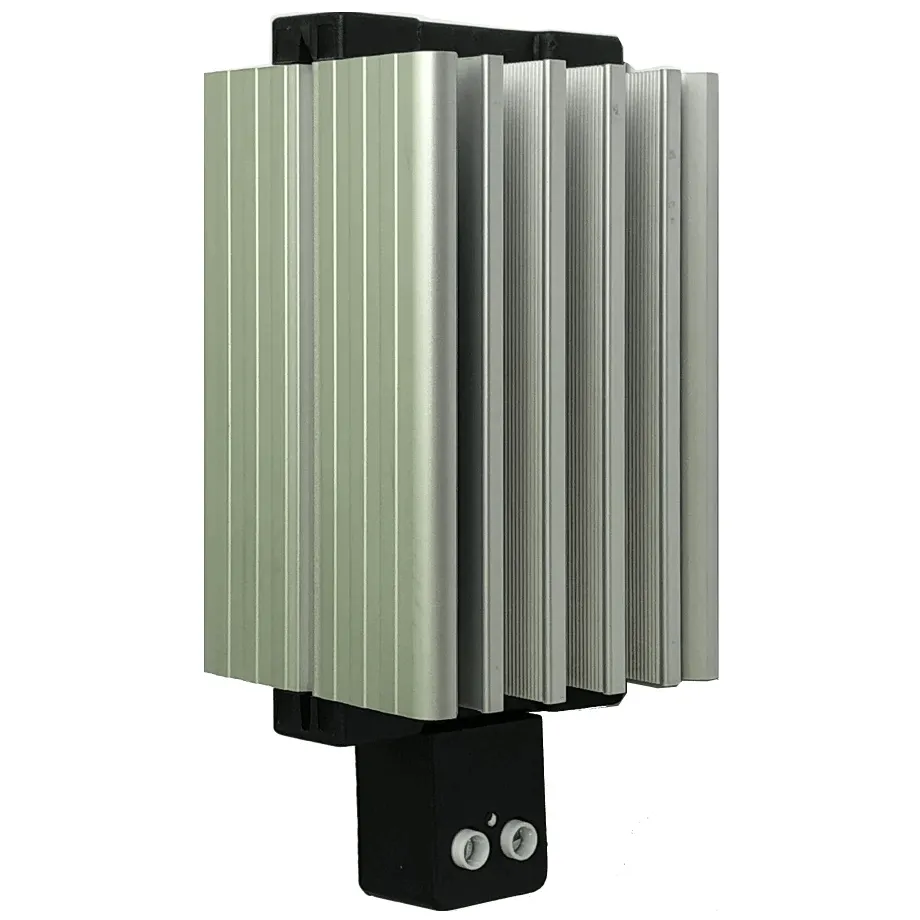

IP-H150 Heater 150W Compact

  •  - Click to enlarge
  •  - Click to enlarge
  •  - Click to enlarge
IP-H150 Heater 150W Compact

Tap for gallery

$236.72inc GST
$193.70
$213.07inc GST


Product Information
Specification

150W Compact Heater

Assists in preventing failures or corrosion caused by low temperatures or high humidity.
Manufactured to the highest quality in Italy.

FeatureDetail
Heating Capacity150 W (at 20° C ambient temperature)
Power supply110 - 250 V AC or DC
Inrush current9.5 A
Delayed fuse (advised)10 A
Heating element typePTC resistor self regulating
Electrical connections2 screw terminals for stranded or rigid wire 2.5 mm²
Protection class IECClass II
Protection degree EN60529IP20
Operating temperature-45 / +70 °C
Storage temperature-45 / +80 °C
RadiatorExtruded aluminium profile
MountingClip for mounting on DIN rail 35 mm EN50022
Installation positionBest efficiency in vertical position
DimensionsH 220 x W 59 x D 61 mm
Weight0.57 kg
ConformityCE - UL



Images are indicative only. Contents and colours may vary.

Product CodeIP-H150
ManufacturerIP Enclosures
ConditionNew
Weight0.75 kg
Width5.9 cm
Height22 cm
Depth6.1 cm
