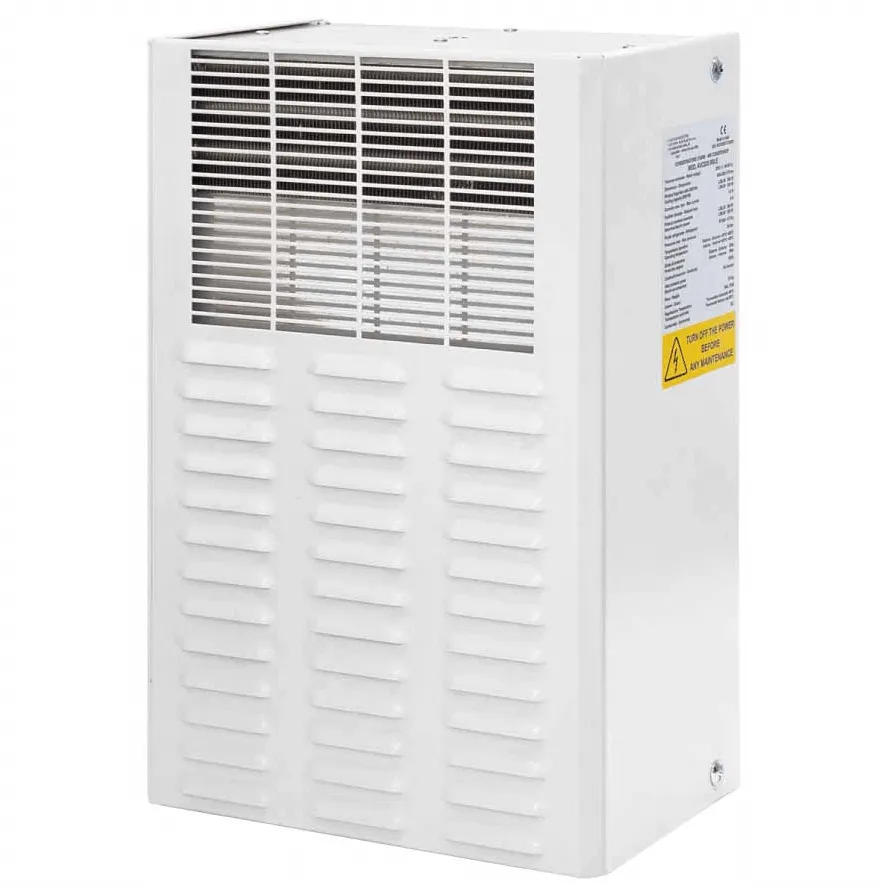

350W Outdoor Wall Mounted Air Conditioner
For the cooling needs of electrical cabinets.
Optimised for door or side panel mounting and designed for high efficiency and low maintenance.
Made in Italy and SAA approved and certified for use in Australia.
Feature | Detail |
Power supply | 230 V 50-60 Hz |
Dimensions H x W x D | H 430 x W 280 x D 170 mm |
Cooling capacity EN814 A35A35 | 350 - 370 W |
Cooling capacity EN814 A35A50 | 200 - 220 W |
Air flow rate (free blow) inside | 350 - 390 m³/h |
Air flow rate (free blow) outside | 600 - 625 m³/h |
Max current | 1.8 - 1.9 A |
Delayed fuse | 4 A |
Absorbed electric power EN814 A35A35 | 260 - 270 W |
Absorbed electric power EN814 A35A50 | 280 - 300 W |
Refrigerant (type/charge) | R134a / 300 g |
Maximum Pressure | 2400 kPA |
Operating temperature (ambient) | +20 / +55 °C |
Operating temperature (enclosure) | +20 / +45 °C |
Temperature controller (factory set at 35°C) | Digital thermostat |
Compressor type | Rotative compressor |
Noise level | 60 dB(A) |
Electrical connection | Three-pole connector |
Protection degree EN60529/1 enclosure inside | IP54 |
Protection degree EN60529/1 ambient inside | IP34 |
Weight (with packaging) | 15 (16) kg |
Colour | RAL7035 (Light Grey) |
Conformity/Certifications | SAA, CE, AS/NZS60335.2.40:2019, AS/NZS60335.1:2020 |
Images are indicative only. Contents and colours may vary.
