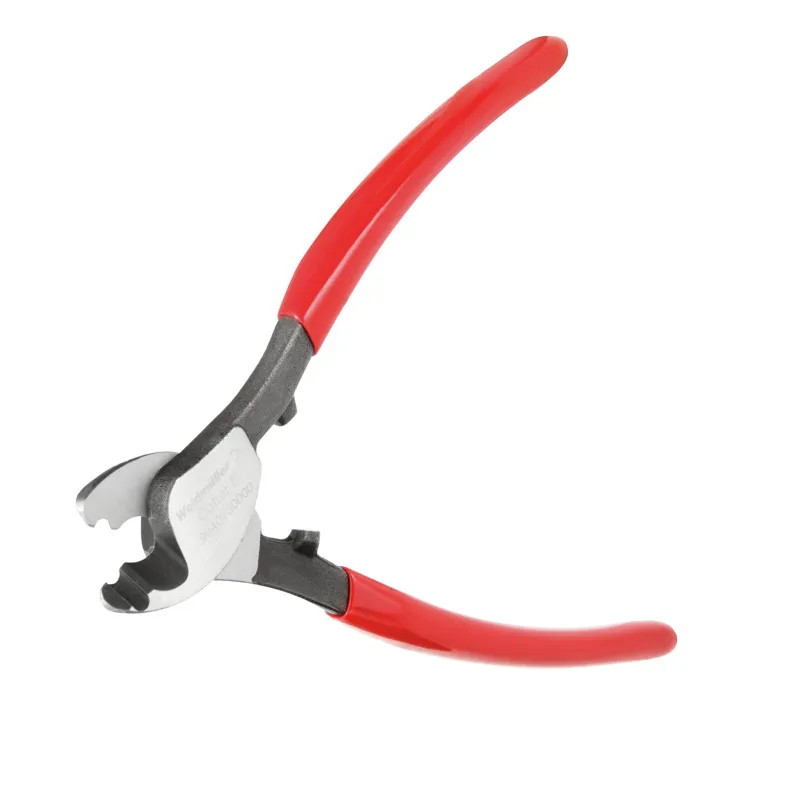

9040130000 CUTTER 8 Redline

  • 9040130000 CUTTER 8 Redline

Tap to enlarge

$50.16inc GST
$36.50
$40.15inc GST

Product Information
Specification

Cable cutter 8 mm

  • Not suitable for steel wires, steel-armoured cables, aluminium alloys and hard-drawn copper conductors!
  • Cutting without deformation of the conductor.
  • Do not cut live conductors.
  • Individually tested protective insulation, 1000 V, VDE and GS tested in accordance with EN/IEC 60900.
  • Optimised handle ergonomics.
  • Minimal hand force required.



Technical Data
Max. cutting performance, copper cable
Copper cable - solid, max.16 mm² / 6 AWG
Copper cable - stranded, max.16 mm² / 6 AWG
Copper cable - flexible, max.16 mm² / 6 AWG
Copper cable, max. diameter8 mm
Max. cutting performance, aluminium cable
Stranded aluminium cable, max (mm²)16 mm² / 6 AWG
Stranded aluminium cable, max. diameter8 mm
Single-core aluminium cable, max.(mm²)16 mm²
Data / telephone / control cable
Data / telephone / control cable, max. Ø8 mm
Tool data
Depth:30 mm
Width:185 mm
Height:65.5 mm
Weight:180 g
Note:Tool closed



Images are indicative only. Contents and colours may vary.

Product Code9040130000
ManufacturerWeidmuller
ConditionNew
Weight0.198 kg
Width18.5 cm
Height6.55 cm
Depth3 cm
