Name: 9028700000 PZ 6 Roto L T Crimp Set
Brand: Weidmuller
SKU: 9028700000
Price: 374.00 AUD
Availability: InStock

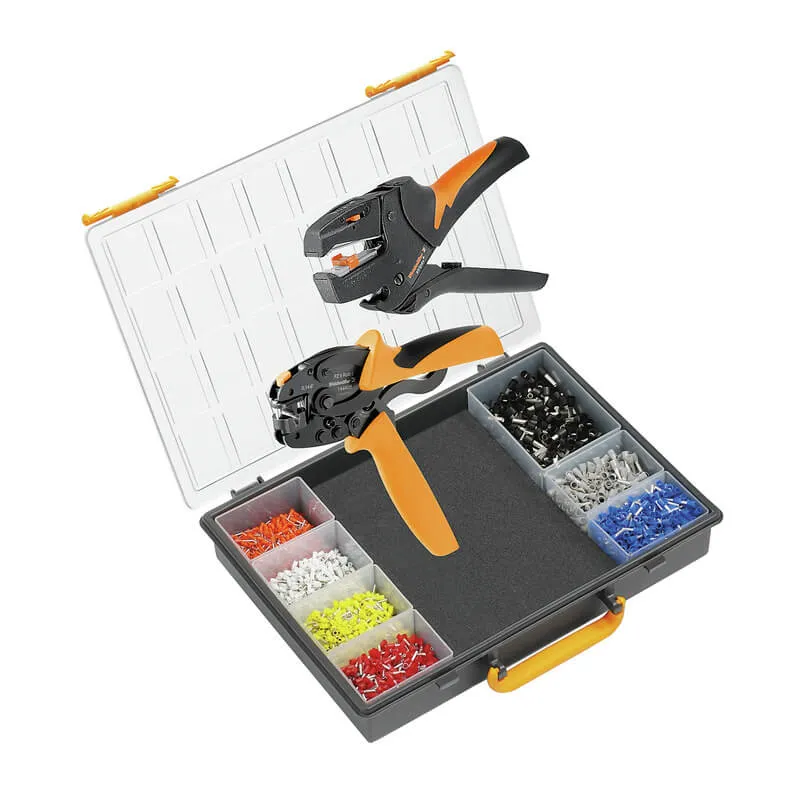

Crimp Set PZ 6 Roto L T

Professional Strip & Crimp Set contains:

Type	Ø mm²	AWG	L1	L2	D1	D2	S1	S2	Stripping length	Colour	Approx Qty	Product Code
H0,5/14D W	0.5	AWG 20	14	8	1	2.6	0.15	0.2	10	White	500	9019010000
H0,75/14T HBL	0.75	AWG 18	14	8	1.2	2.8	0.15	0.25	10	Light Blue	500	9021040000
H1,0/14D R	1	AWG 17	14	8	1.4	3	0.15	0.25	10	Red	500	9019080000
H1,5/14D SW	1.5	AWG 16	14	8	1.7	3.5	0.15	0.25	10	Black	500	9019120000
H2,5/15T GR	2.5	AWG 14	15	8	2.2	4.4	0.15	0.25	10	Grey	500	9021070000
H4,0/18T OR	4	AWG 12	18	10	2.8	4.8	0.2	0.3	12	Orange	250	9021100000
H6,0/20T GN	6	AWG 10	20	12	3.5	6.3	0.2	0.3	14	Green	100	9021130000
