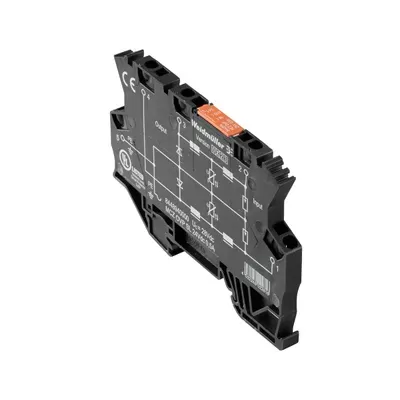

8448940000 Surge Protection Slimline Digital MCZ OVP SL 24VDC 0.5A

  • 8448940000 Surge Protection Slimline Digital MCZ OVP SL 24VDC 0.5A

Tap to enlarge

$126.83inc GST
$92.30
$101.53inc GST

Available in multiples of 10.
Product Information
Specification

MCZ SERIES

Surge protection for instrumentation and control, 0.5 A.

Clamped conductors
Flexible w. ferrule, min. (DIN 46338-1)0.5 mm²
Flexible, max.1.5 mm²
Flexible, min.0.5 mm²
Rated cross-section for solid/flexible with ferrule1.5 mm²
Rated cross-section, max. ferrules1 mm²
Solid, max.1.5 mm²
Solid, min.0.5 mm²
Type of connectionTension clamp connection

General data
Designterminal
Ambient temperature (operational)-40 ... 60°C

Insulation coordination to EN 50178
Pollution severity2
Surge categoryIII

Interference voltage
Protection level on output side sym., input 1 kV/µs, typ.80 V
Protection level on output side sym., input 8/20 µs, typ.130 V
Protection level on output side unsym., input 1kV/µs, typ.40 V
Protection level on output side unsym., input 8/20 µs, typ.65 V

Technical data
Cut-off frequency (-3 dB) at load impedance500 kHz 240 ?
Rated voltage (DC), max.28 V
Volume resistivity2.5 ?
Rated voltage, max.28 V DC
Nominal voltage24 V DC
Rated current0.5 A
Rated voltage (DC)24 V
max. continuous voltage, Uc (AC)28 V
Operating current, Imax0.5 A
Specification class to IEC 61643-21D1
Lightning test voltage I imp (10/350 µs)1 kA
Discharge current, max. (8/20 µs)5 kA
Response time≤ 100 ps
Fuse, max.0.5 A

Dimensions
Clamping range, nom.1.5 mm²
Length91 mm
Height63.5 mm
Width6 mm

Approvals
Approval bodyGOSTME25 CE

Classifications
ETIM 2.0EC000943
ETIM 3.0EC000943
eClass 4.127-14-11-27
eClass 5.027-14-11-27
eClass 5.127-14-11-27





Images are indicative only. Contents and colours may vary.

Product Code8448940000
ManufacturerWeidmuller
ConditionNew
Weight0.0237 kg
Width0.6 cm
Height9.1 cm
Depth6.35 cm
