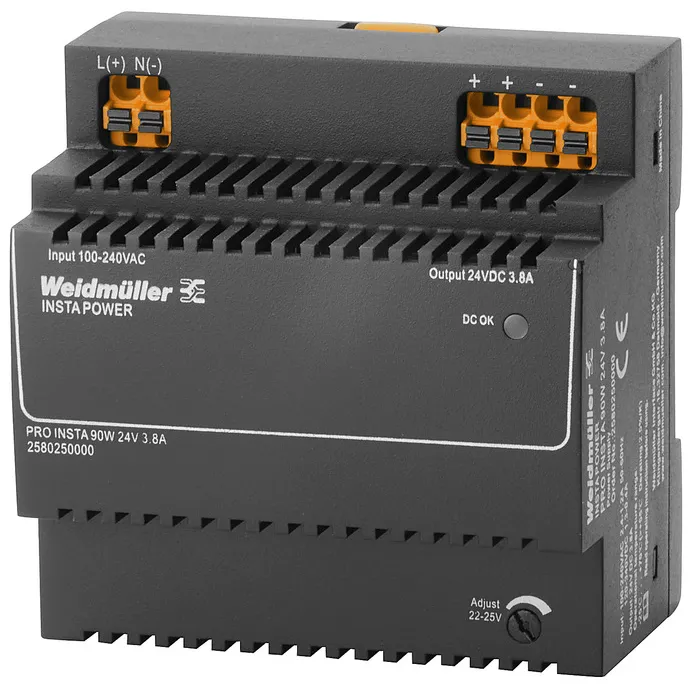

2580250000 24VDC 3.8A 90W PRO INSTA Switch Mode Power Supply

  • 2580250000 24VDC 3.8A 90W PRO INSTA Switch Mode Power Supply

Tap to enlarge

$122.65inc GST
$89.20
$98.12inc GST

Product Information
Specification

PRO INSTA Switch Mode Power Supply 90W 24V 3.8A

  • AC & DC voltage input 100 - 240 V AC / 120 - 340 V DC.
  • Voltage output adjustable via potentiometer on front.
  • Temperature range from -25 to +70 C.
  • LED green indication (operating OK).
  • Ideal for small control cabinets.
  • Push-in cable connection.
  • Basic depth of only 60 mm.
  • High efficiency of up to 91%.
Input
AC current consumption1.2 A @ 230 V AC / 2.4 A @ 100 V AC
AC input voltage range85 to 264 V AC (derating at 100 V AC)
Connection systemPush-in
DC current consumption0.4 A @ 370 V DC / 1.3 A @ 120 V DC
DC input voltage range95 to 370 V DC
Frequency range AC45 to 65 Hz
Input fuse (internal)Yes
Inrush currentmax. 40 A
Recommended back-up fuse2 A / DI, safety fuse
6 A, Char. B, circuit breaker
2 to 4 A, Char. C circuit breaker
Output
Capacitive loadUnrestricted
Connection systemPush-in
Nominal output current for Unom3.8 A @ 55 °C
Output voltage22 to 28 V (adjustable via potentiometer on front)
Output voltage, max.28 V
Output voltage, min.22 V
Output voltage, note(adjustable via potentiometer on front)
Ramp-up time≤ 100 ms
Rated output voltage24 V DC ± 1 %
Residual ripple, breaking spikes< 50 mVss @ UNenn, Full Load



Images are indicative only. Contents and colours may vary.

Product Code2580250000
ManufacturerWeidmuller
ConditionNew
Weight0.352 kg
Width9 cm
Height9.050000000000001 cm
Depth6 cm
